SMT Single-Rail PCB Flipper | 90°/180° Turner with SMEMA Interface

Product Introduction
SMT Single-Rail Automatic PCB Flipper replaces manual flipping, ideal for double-sided assembly, testing, rework and dispensing. Safe, stable and efficient, it’s the top choice for SMT line automation.
Key Features
High Safety Structure: Fully enclosed sheet metal & aluminum alloy, highest protection level for safe operation.
Precision Transmission: Stepper motor + ball screw lifting, smooth and vibration-free, protecting PCBs and components.
Smart Control: PLC + touch screen with auto fault diagnosis, audible-visual & on-screen alarms for quick troubleshooting.
Flexible Flipping: One-key switch between 90°/180° modes to meet various process needs.
Easy Width Adjustment: Hand-cranked lead screw for quick adaptation to different PCB sizes.
Line Compatibility: Standard SMEMA interface, seamless connection with mounters, AOI, etc.
Applications
Post-insertion flipping: Enables double-sided component mounting.
Pre-test flipping: Full inspection of backside circuits and components.
Rework flipping: Efficient repair and replacement of backside defective components.
Post-dispensing flipping: Natural adhesive curing to avoid flow issues.
Key Specs
PCB width 50–460mm, flipping 90°/180°, 220V power, 0.4–0.6MPa air supply.

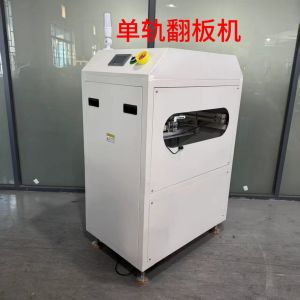

SMT Single-Rail PCB Flipper | 90°/180° Turner with SMEMA Interface Images
